200,000 points (seed 0), up (0, 0, 1), fcp defaults; 40 parts, 22 fit cuts
(14 where the mesh encoding does not cut, marked *). Each cut: the layer below and the layer above,
canonical frame (x right, y up), zoomed on the cut track's rings. Black: GT, the exact section of the mesh at the layer centre.
Grey: the points within half a layer of the plane. Coloured: the point slicer's rings (red: the part below the cut, blue: the
part above, yellow: other rings; dashed: holes). Generated 2026-10-27 21:37 by scripts/splits.py.

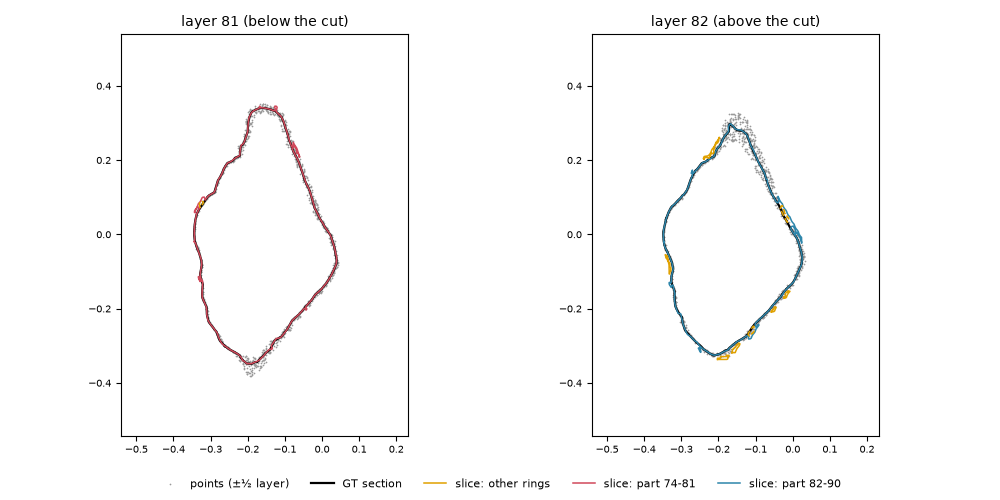

Zoom: layer 82 (cut 16, above)
The tracked ring follows GT closely but has small hooks and spikes (vertices every ~half spacing); next to it, small extra rings sit one or two spacings off the surface. They are below the area threshold, so tracking drops them, but they and the hooks are what the slicer adds on top of GT.
Cuts
Cut 0: layers 10 | 11 (track 5-38; parts 5-10 | 11-20; the mesh also cuts here (±1 layer))

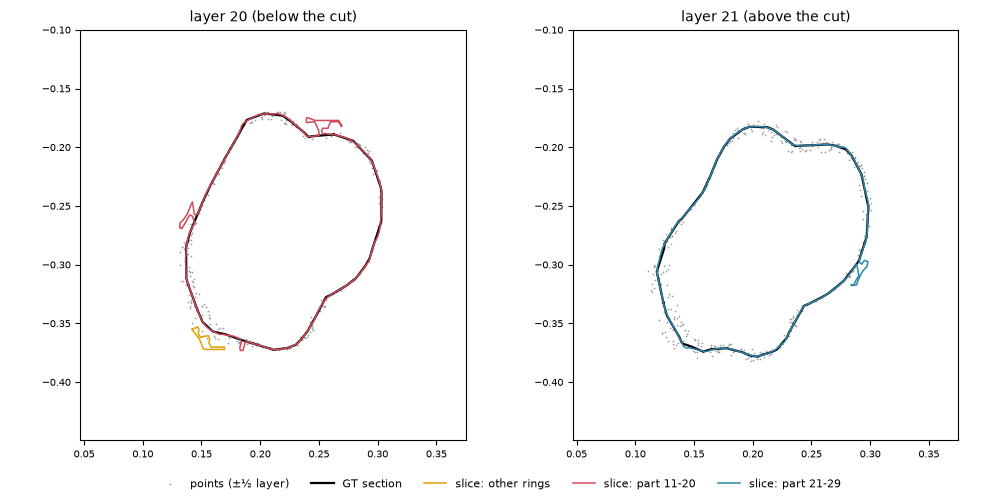

Cut 1: layers 20 | 21 (track 5-38; parts 11-20 | 21-29; the mesh does not cut here)

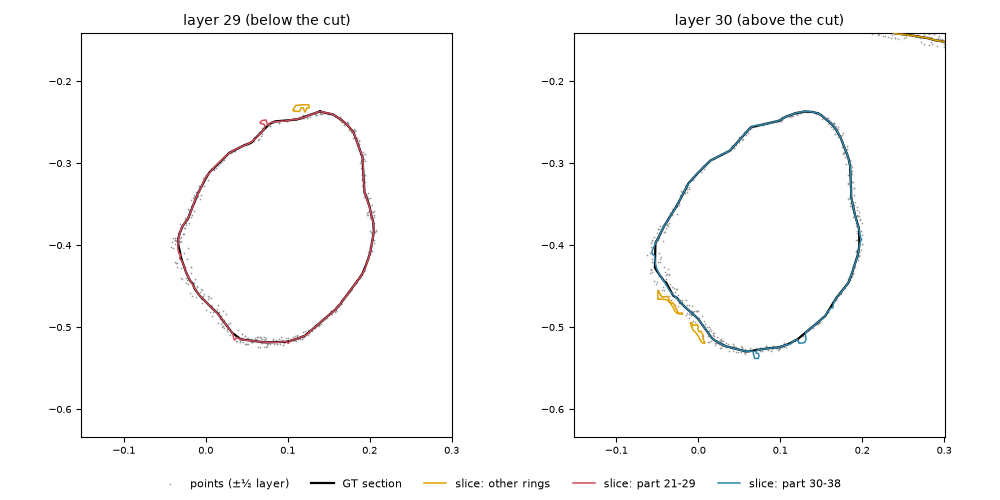

Cut 2: layers 29 | 30 (track 5-38; parts 21-29 | 30-38; the mesh also cuts here (±1 layer))

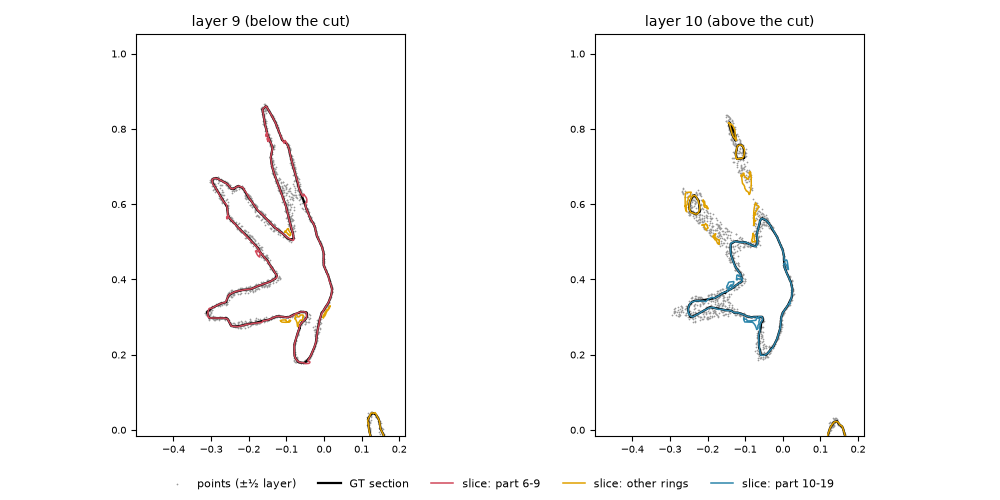

Cut 3: layers 9 | 10 (track 6-39; parts 6-9 | 10-19; the mesh also cuts here (±1 layer))

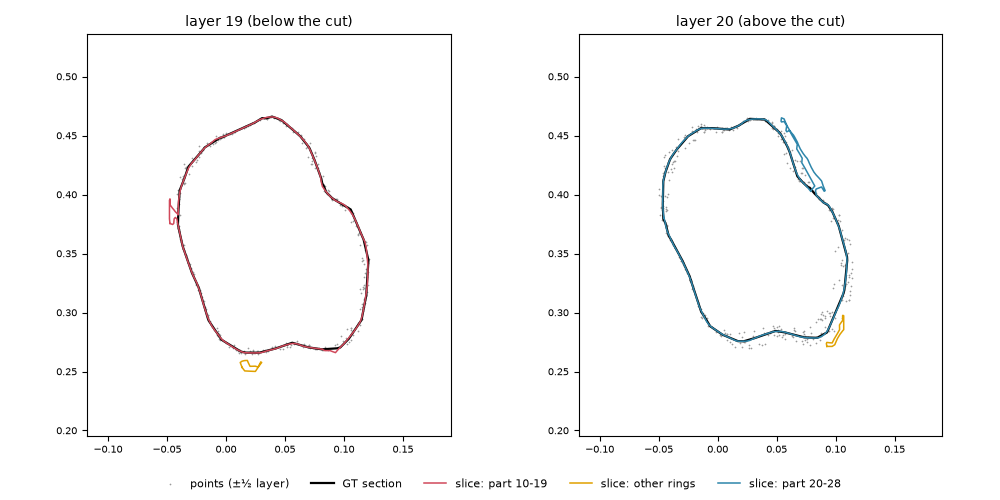

Cut 4: layers 19 | 20 (track 6-39; parts 10-19 | 20-28; the mesh does not cut here)

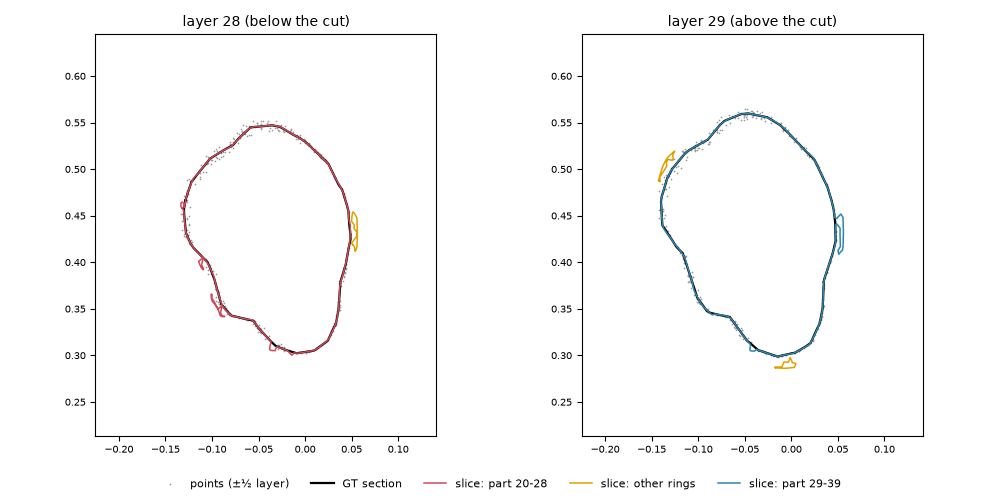

Cut 5: layers 28 | 29 (track 6-39; parts 20-28 | 29-39; the mesh also cuts here (±1 layer))

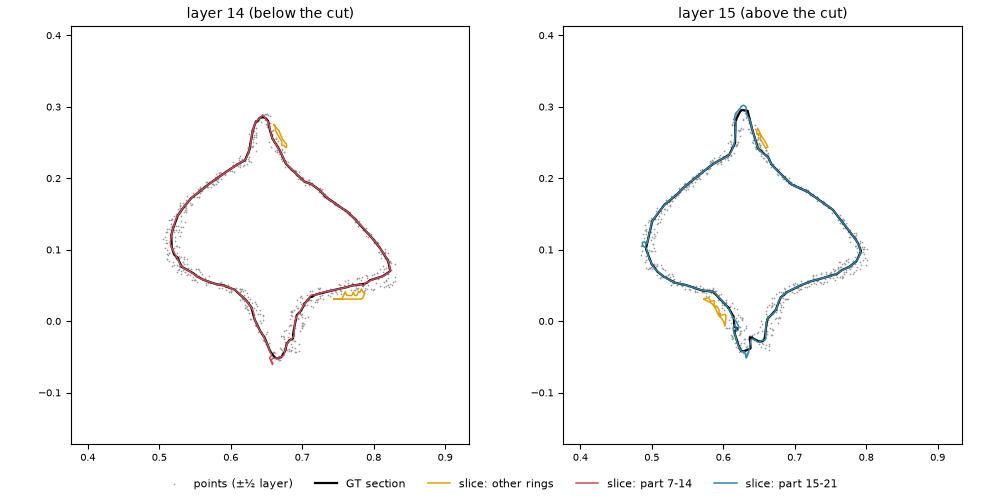

Cut 6: layers 14 | 15 (track 7-107; parts 7-14 | 15-21; the mesh also cuts here (±1 layer))

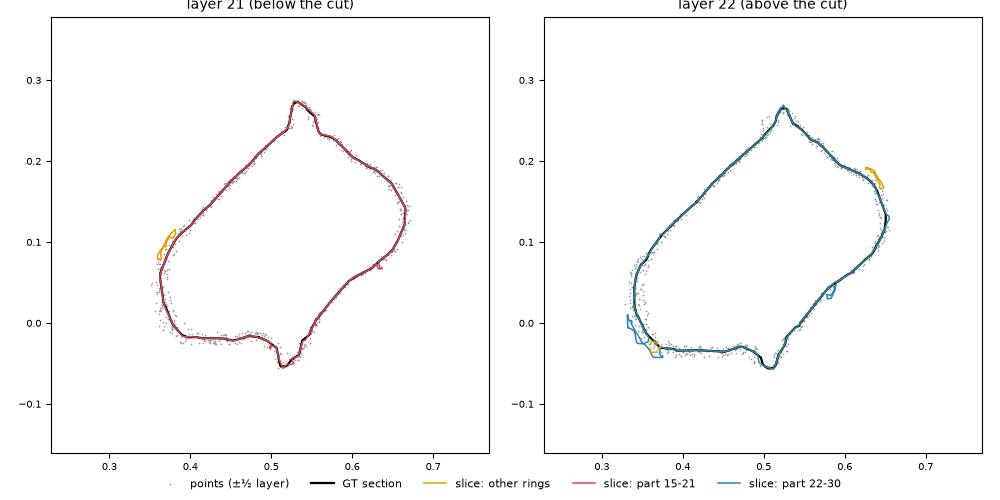

Cut 7: layers 21 | 22 (track 7-107; parts 15-21 | 22-30; the mesh does not cut here)

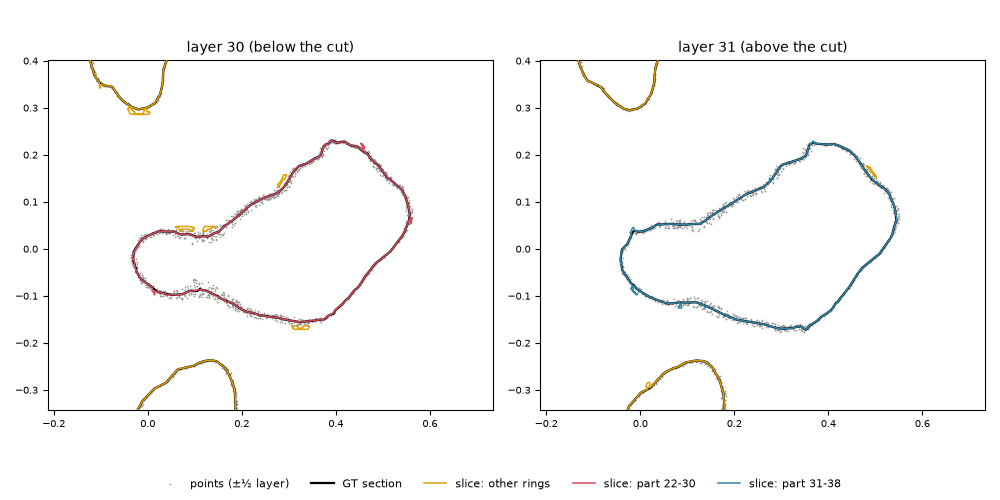

Cut 8: layers 30 | 31 (track 7-107; parts 22-30 | 31-38; the mesh also cuts here (±1 layer))

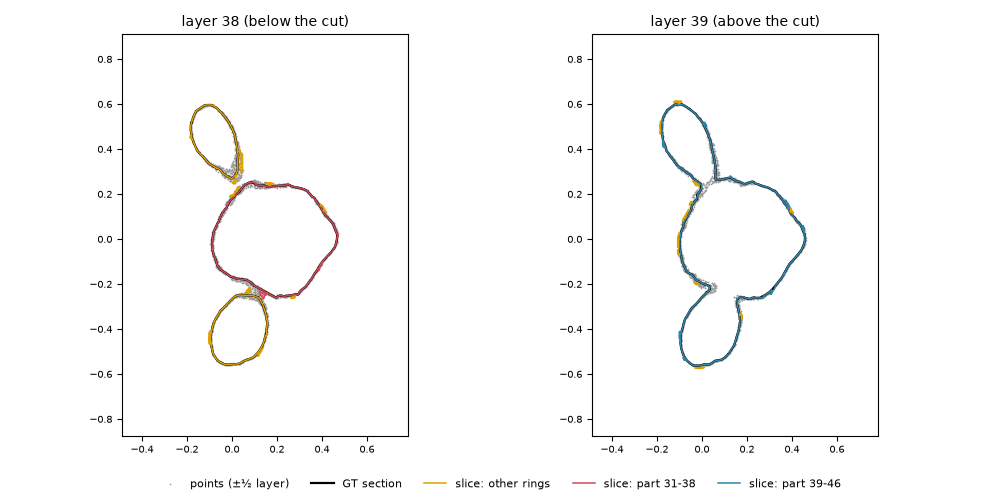

Cut 9: layers 38 | 39 (track 7-107; parts 31-38 | 39-46; the mesh also cuts here (±1 layer))

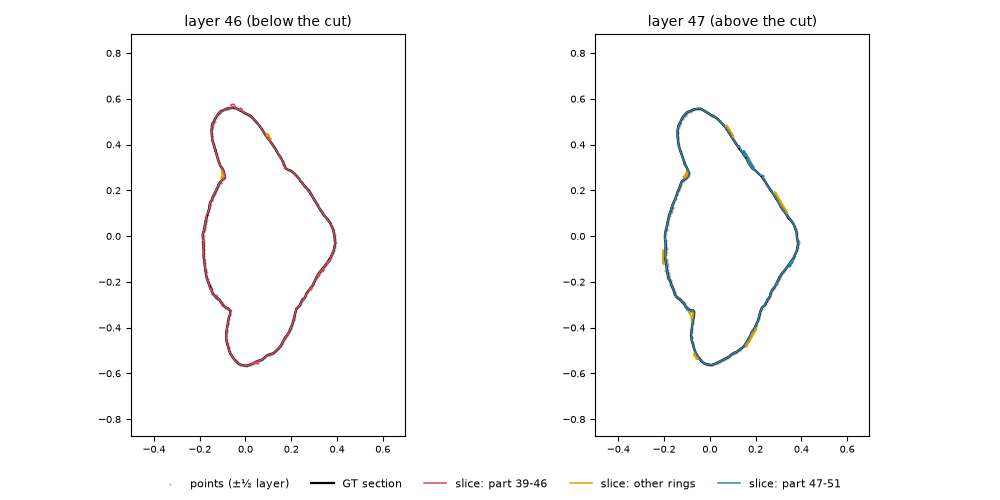

Cut 10: layers 46 | 47 (track 7-107; parts 39-46 | 47-51; the mesh does not cut here)

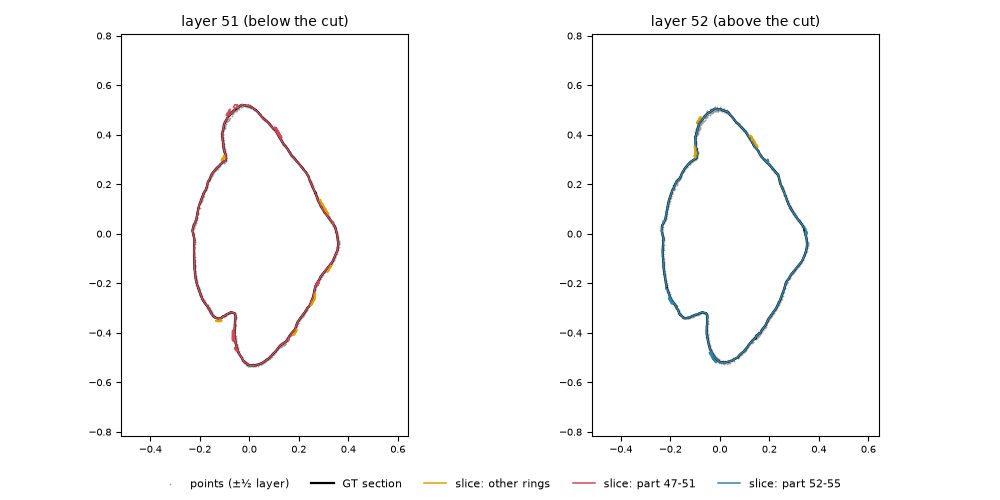

Cut 11: layers 51 | 52 (track 7-107; parts 47-51 | 52-55; the mesh does not cut here)

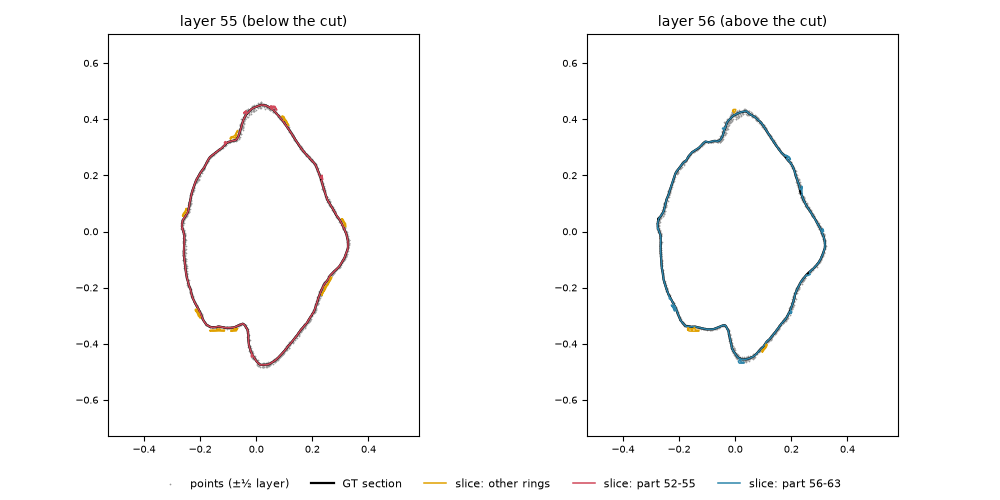

Cut 12: layers 55 | 56 (track 7-107; parts 52-55 | 56-63; the mesh does not cut here)

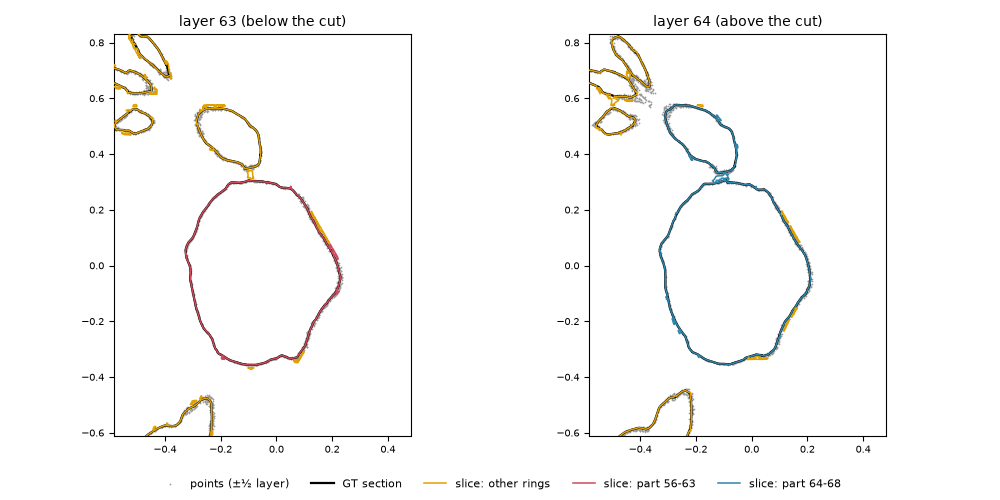

Cut 13: layers 63 | 64 (track 7-107; parts 56-63 | 64-68; the mesh does not cut here)

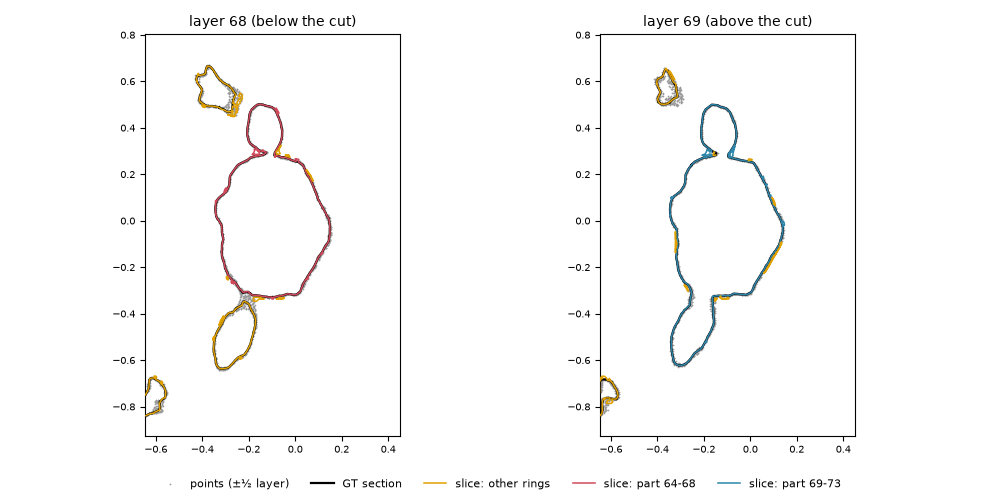

Cut 14: layers 68 | 69 (track 7-107; parts 64-68 | 69-73; the mesh also cuts here (±1 layer))

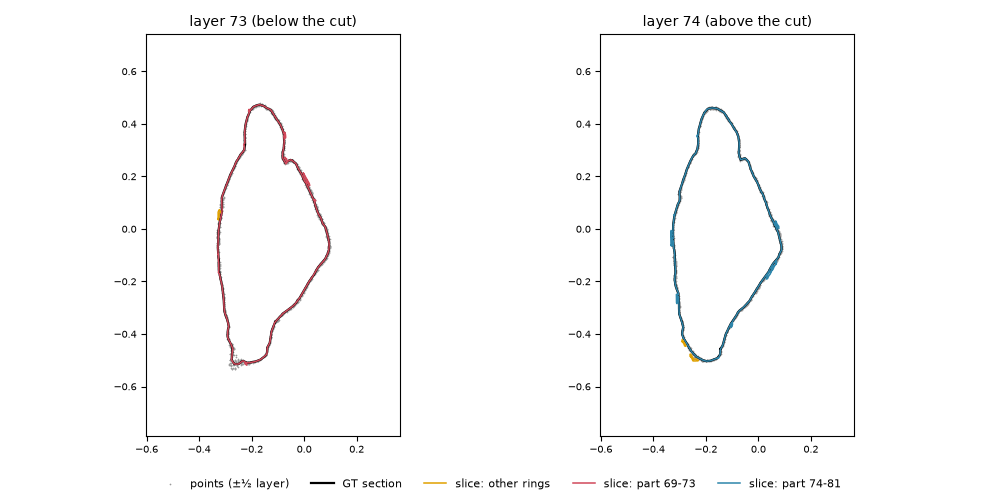

Cut 15: layers 73 | 74 (track 7-107; parts 69-73 | 74-81; the mesh does not cut here)
Cut 16: layers 81 | 82 (track 7-107; parts 74-81 | 82-90; the mesh does not cut here)

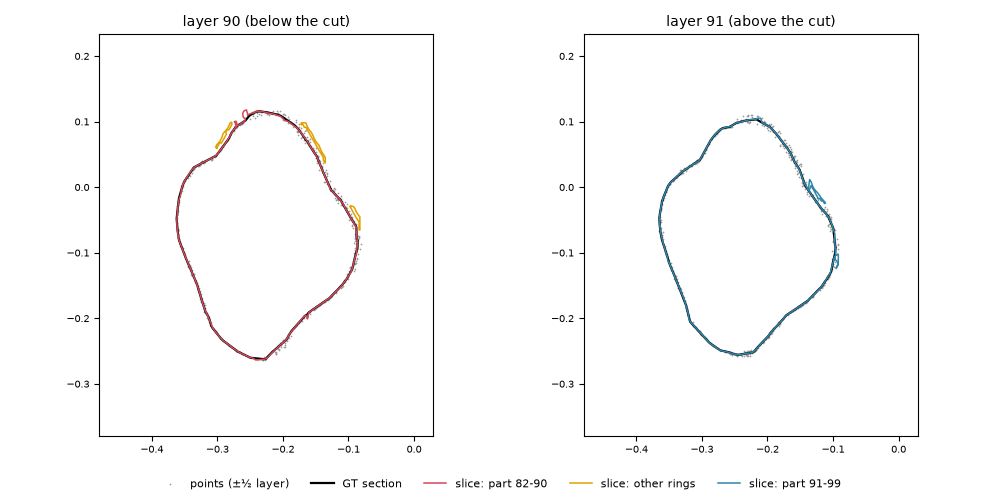

Cut 17: layers 90 | 91 (track 7-107; parts 82-90 | 91-99; the mesh does not cut here)

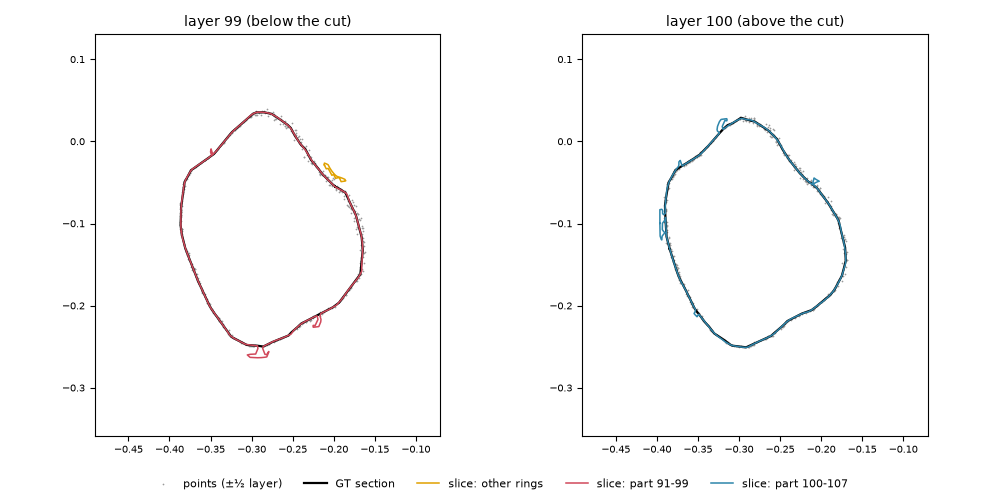

Cut 18: layers 99 | 100 (track 7-107; parts 91-99 | 100-107; the mesh does not cut here)

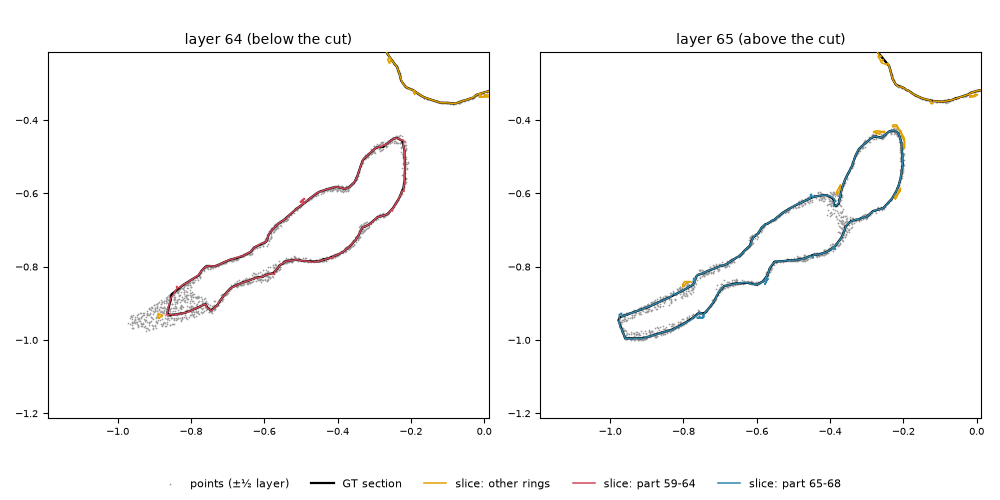

Cut 19: layers 64 | 65 (track 59-68; parts 59-64 | 65-68; the mesh does not cut here)

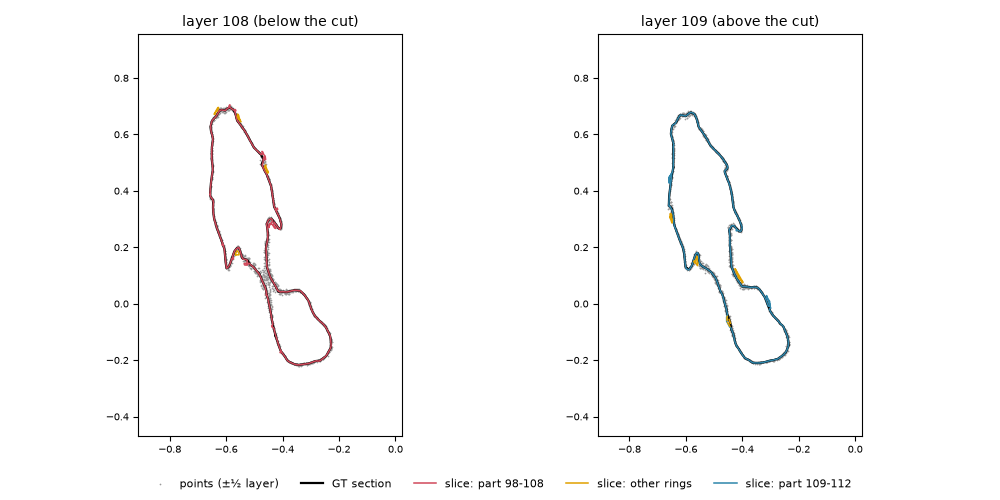

Cut 20: layers 108 | 109 (track 98-121; parts 98-108 | 109-112; the mesh does not cut here)

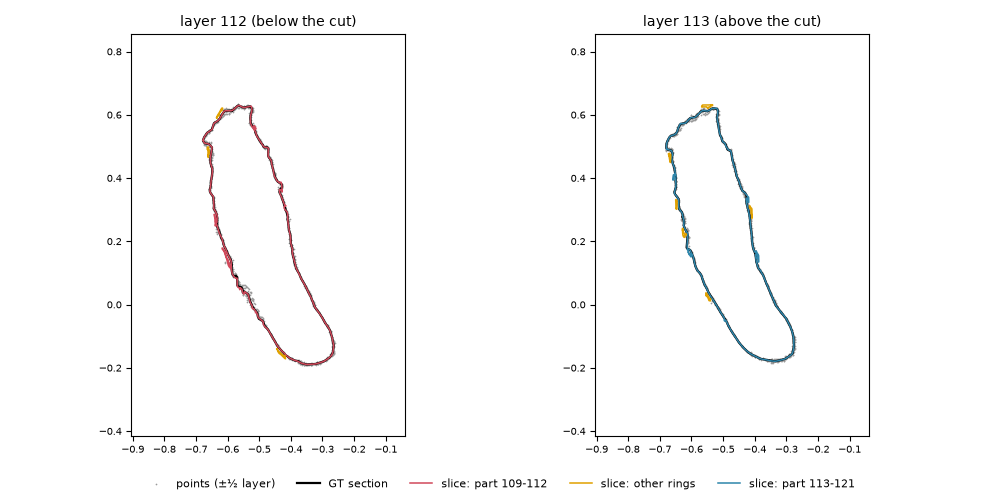

Cut 21: layers 112 | 113 (track 98-121; parts 109-112 | 113-121; the mesh does not cut here)
