"mesh": the mesh route on the mesh the cloud came from (clean or noisy), the reference for parts and rings. Errors against the clean mesh (mean and p95 of the symmetric nearest-point distance over the diagonal).
| configuration | parts | holes | mean/diag | p95/diag | encode s |
|---|---|---|---|---|---|
| mesh | 22 | 5 | 0.00299 | 0.00557 | 0.1 |
| package | 30 | 9 | 0.00774 | 0.04098 | 0.2 |
| pointtest | 25 | 8 | 0.00781 | 0.04087 | 1.2 |
| local | 27 | 8 | 0.00492 | 0.01168 | 1.7 |
| gwn | 24 | 4 | 0.00438 | 0.01016 | 1.9 |
| gwn+pointtest | 21 | 4 | 0.00433 | 0.01009 | 2.9 |

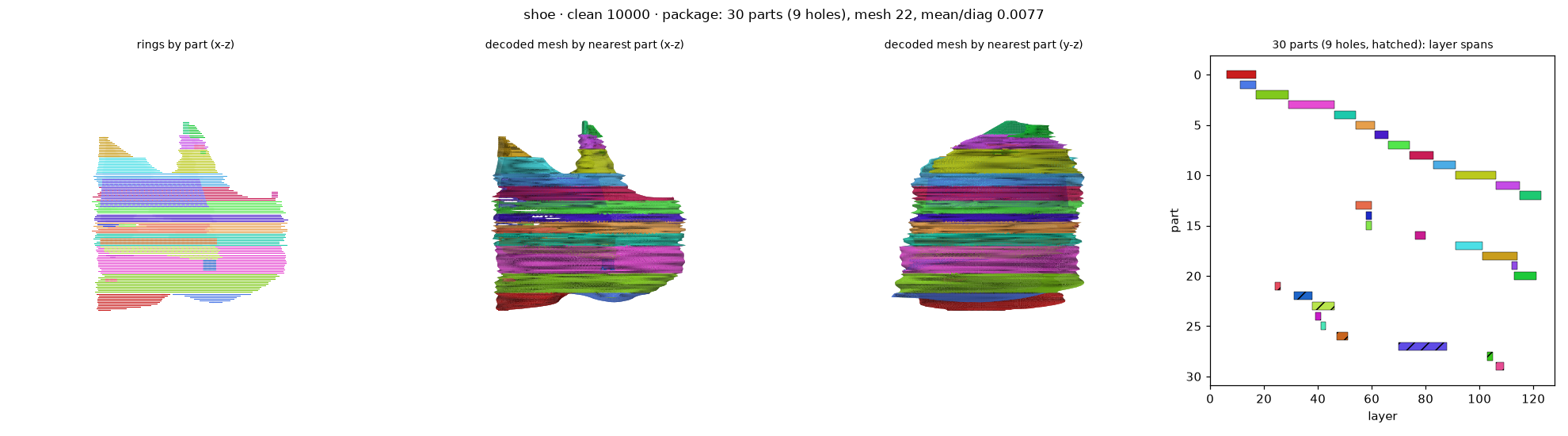

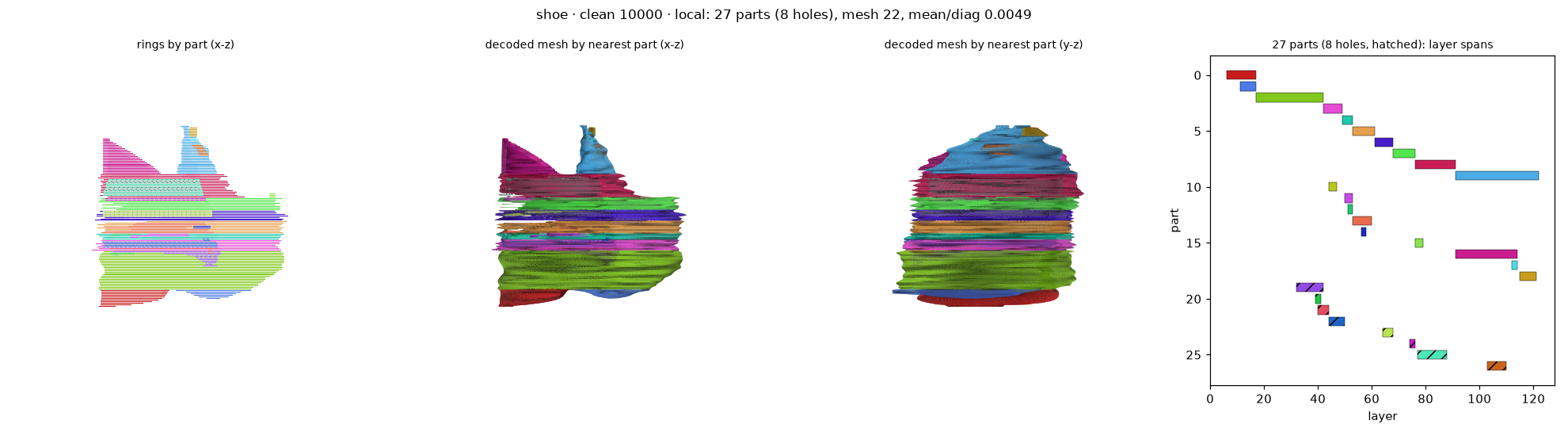

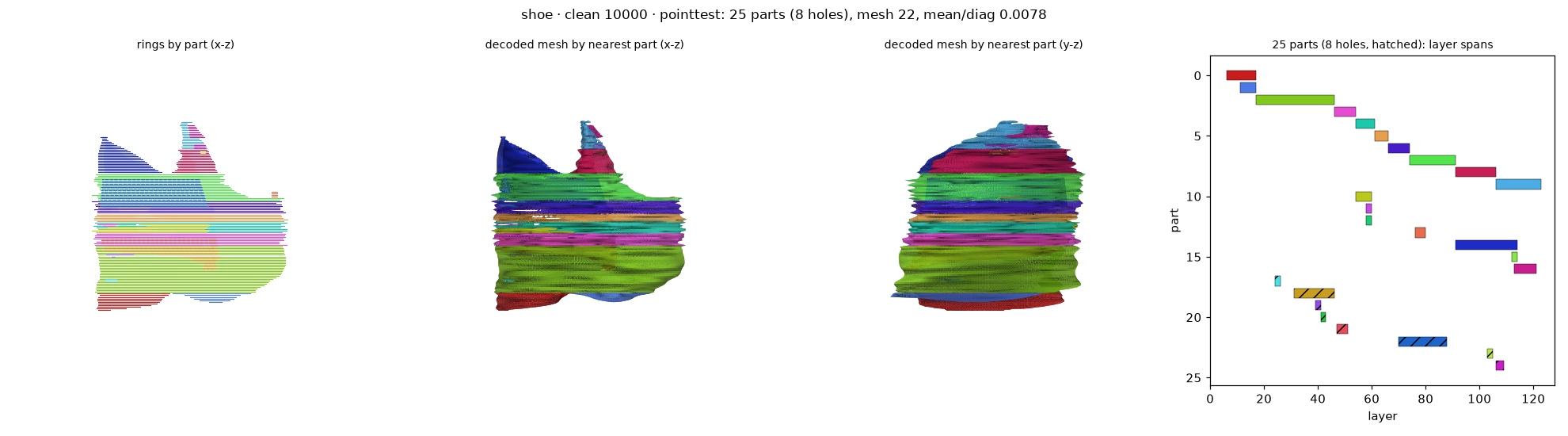

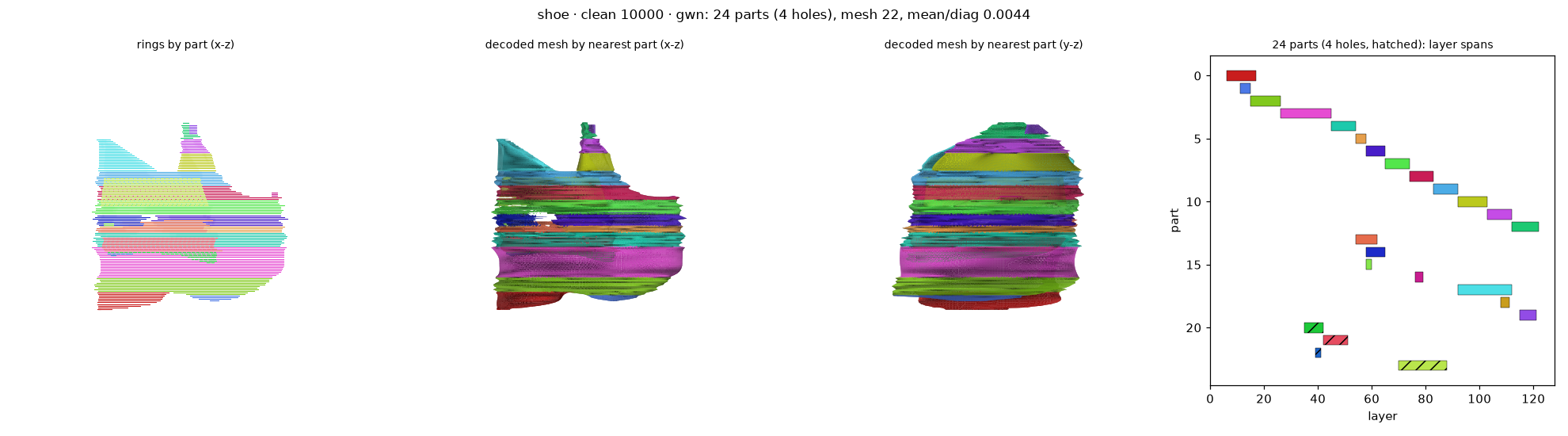

First column: the mesh route's rings (at the mesh layer nearest in height). Black: GT (exact section of the source mesh at the cloud's layer). Grey: the points within a spacing of the plane. Red: solid rings, blue dashed: holes. Metric canonical frame of the cloud (x right, y up).
